Estes Balsa Freeform Fin Set| Manufacturer: | Estes | | Part Number: | 032234 | | Style: | Freeform Fin Set | | Material: | Balsa |

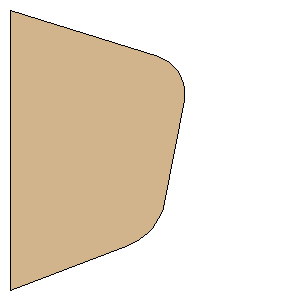

Download as PDF | Point 1: | (0.0000 mm, 93.4720 mm) | | Point 2: | (39.6268 mm, 78.4629 mm) | | Point 3: | (41.4054 mm, 77.6834 mm) | | Point 4: | (43.0954 mm, 76.7268 mm) | | Point 5: | (44.6793 mm, 75.6032 mm) | | Point 6: | (46.1405 mm, 74.3242 mm) | | Point 7: | (47.4640 mm, 72.9030 mm) | | Point 8: | (48.6358 mm, 71.3545 mm) | | Point 9: | (49.6440 mm, 69.6947 mm) | | Point 10: | (50.4779 mm, 67.9409 mm) | | Point 11: | (51.1289 mm, 66.1113 mm) | | Point 12: | (51.5903 mm, 64.2250 mm) | | Point 13: | (58.0909 mm, 30.2207 mm) | | Point 14: | (58.3209 mm, 28.3795 mm) | | Point 15: | (58.2801 mm, 26.5245 mm) | | Point 16: | (57.9695 mm, 24.6952 mm) | | Point 17: | (57.3957 mm, 22.9307 mm) | | Point 18: | (56.5709 mm, 21.2686 mm) | | Point 19: | (55.5127 mm, 19.7444 mm) | | Point 20: | (54.2437 mm, 18.3907 mm) | | Point 21: | (52.7910 mm, 17.2364 mm) | | Point 22: | (49.4619 mm, 15.6195 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 3.6800 inches (93.4720 mm) | | Height: | 3.6800 inches (93.4720 mm) |
