Estes GBU-24 Paveway III Freefor Freeform Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

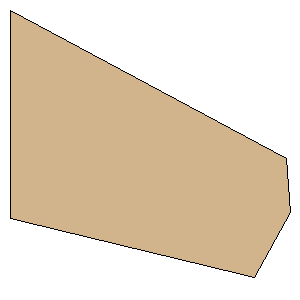

Download as PDF | Point 1: | (0.0000 mm, 56.3500 mm) | | Point 2: | (65.9930 mm, 72.1130 mm) | | Point 3: | (75.6000 mm, 54.5770 mm) | | Point 4: | (74.7880 mm, 40.0460 mm) | | Point 5: | (0.0000 mm, 0.0000 mm) | | Width: | 2.9764 inches (75.6000 mm) | | Height: | 2.8391 inches (72.1130 mm) |
