Estes GBU-24 Paveway III Trapezo Trapezoid Fin Set| Manufacturer: | Estes | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |

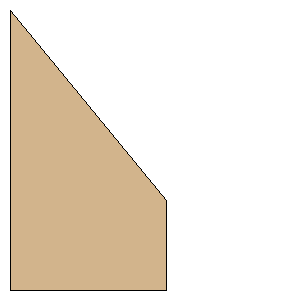

Download as PDF | Root Chord: | 1.5625 inches (39.6875 mm) | | Tip Chord: | 0.5000 inches (12.7000 mm) | | Sweep Distance: | 1.0625 inches (26.9875 mm) | | SemiSpan: | 0.8750 inches (22.2250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (22.2250 mm, 26.9875 mm) | | Point 3: | (22.2250 mm, 39.6875 mm) | | Point 4: | (0.0000 mm, 39.6875 mm) | | Width: | 0.8750 inches (22.2250 mm) | | Height: | 1.5625 inches (39.6875 mm) |
