Cherokee-D Rocksim Design File

• Designer: Gene Street
• Family: Estes : Cherokee-D
• Manufacturer: Estes
• Power: Low-Power
• Recovery: Parachute
• Style: Sport

Comments: Revision of Norman Heyen's 1995 mod based on original Estes kit.

Designer: Norman Heyen/Paul H. Demus

Download oop_estes_cherokee_d.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

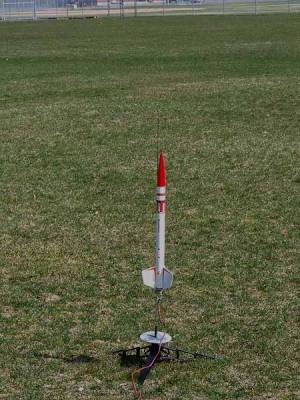

Kit Name: Estes - Cherokee-D {Kit} (1247, K-47) [1971-1983]
Diameter: 1.3250 inches
Style: Sport

CG: 16.3517 inches from front
CP: 21.2026 inches from front
Margin: 3.60 Overstable

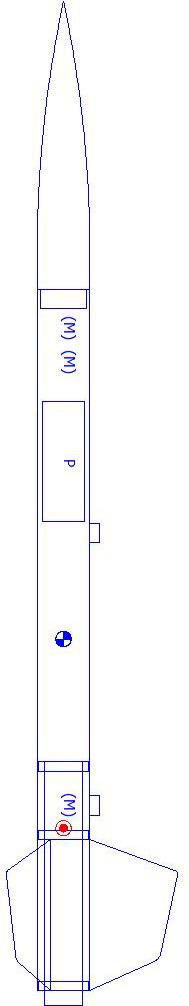

Parts Breakdown

• Estes Cherokee-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Cherokee-D Freeform Fin Se Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.25 in]
• Apogee 13031 Ring
• Custom Mass Object
• Custom Launch Lug
• Custom Mass Object
• Custom Mass Object
• Custom Mylar Parachute (18.50 in)
• Apogee 13035 Ring
• Apogee 13035 Ring
• Apogee 13035 Ring
• Custom Launch Lug
