| Rocketry Parts Database >> Fins >> |

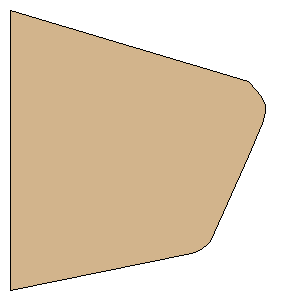

Estes Pro Series II Argent Freef Freeform Fin Set| Manufacturer: | Estes | | Part Number: | 066535 | | Style: | Freeform Fin Set | | Material: | lite ply |
Download as PDF | Point 1: | (0.0000 mm, 123.3420 mm) | | Point 2: | (80.1116 mm, 107.1880 mm) | | Point 3: | (82.5500 mm, 106.1720 mm) | | Point 4: | (84.7852 mm, 105.1560 mm) | | Point 5: | (86.3600 mm, 103.8860 mm) | | Point 6: | (88.1380 mm, 102.1080 mm) | | Point 7: | (104.9530 mm, 64.5160 mm) | | Point 8: | (111.0490 mm, 49.7840 mm) | | Point 9: | (112.3950 mm, 45.0336 mm) | | Point 10: | (112.3950 mm, 41.8733 mm) | | Point 11: | (111.0780 mm, 38.8448 mm) | | Point 12: | (108.7630 mm, 35.5600 mm) | | Point 13: | (105.0800 mm, 31.4960 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8560 inches (123.3420 mm) | | Height: | 4.8560 inches (123.3420 mm) |
