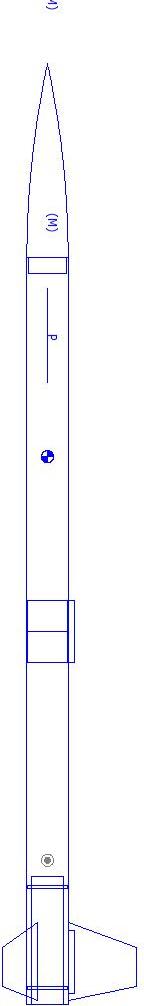

Estes-Maniac-Kit Rocksim Design File

Download estes_maniac_kit+mods.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 12.6438 inches from front
CP: 25.6065 inches from front
Margin: 9.78 Overstable

Parts Breakdown

Estes-Maniac-Kit Ogive Nose Cone

BigBertha-ThreeStage.rkt Mass Object

BigBertha-ThreeStage.rkt Mass Object

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]

Estes-Maniac-Kit Ring

Polyethylene (thin) Parachute (18.00 in)

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]

Estes-Maniac-Kit Trapezoid Fin S Trapezoid Fin Set

Estes-Maniac-Kit Launch Lug

Estes-Maniac-Kit Launch Lug

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.12 in]

Estes-Maniac-Kit Ring

Estes-Maniac-Kit Ring
