Super Vega Rocksim Design File

• Manufacturer: Estes

Download oop_estes_super_vega.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

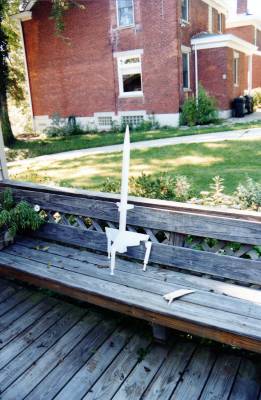

Kit Name: Estes - Super Vega {Kit} (2036) [1990-1993]

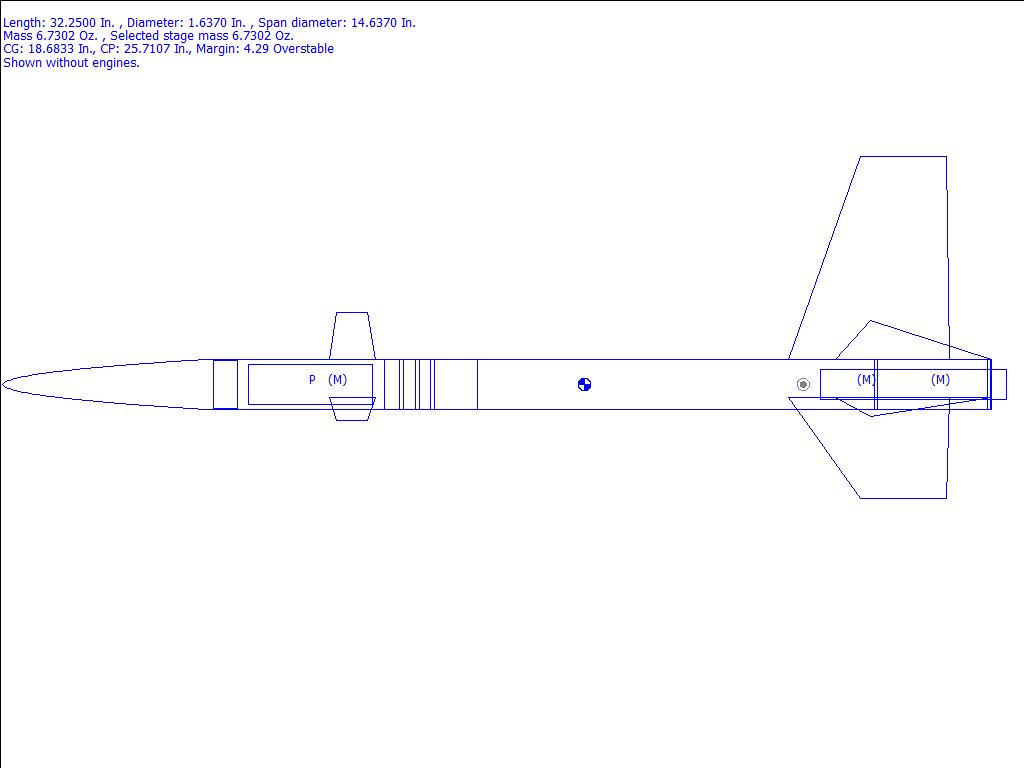

CG: 18.6833 inches from front
CP: 25.7107 inches from front
Margin: 4.29 Overstable

Parts Breakdown

• Anubis Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Estes Estes Ring
• Estes Super Vega Trapezoid Fin S Trapezoid Fin Set
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Mass Object
• Estes Rip stop nylon Parachute (24.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Estes Super Vega Trapezoid Fin S Trapezoid Fin Set
• Estes Super Vega Trapezoid Fin S Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Mass Object
