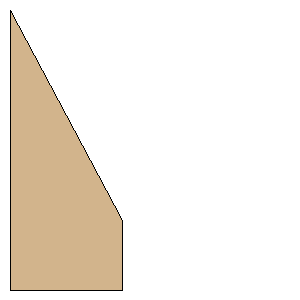

Fiberglass Trapezoid Fin Set| Manufacturer: | | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Fiberglass |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 3.0000 inches (76.2000 mm) | | SemiSpan: | 1.6000 inches (40.6400 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (40.6400 mm, 76.2000 mm) | | Point 3: | (40.6400 mm, 101.6000 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 1.6000 inches (40.6400 mm) | | Height: | 4.0000 inches (101.6000 mm) |
