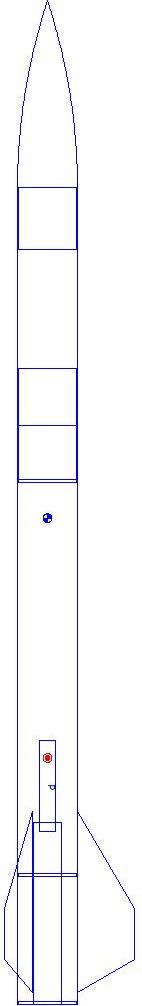

Madcow Rocketry DX3 Rocksim Design File

Designer: Mike Stoop - Madcow Rocketry

Download mcr_dx3.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

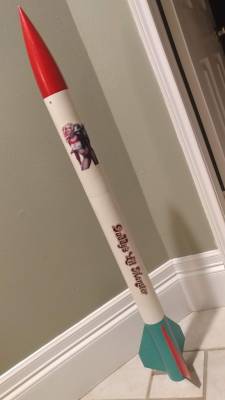

Kit Name: Madcow Rocketry - 2.6" DX3 {Kit} (K-126) [?-]
Diameter: 2.6000 inches
Length: 44.5000 inches

CG: 22.8296 inches from front
CP: 33.3991 inches from front
Margin: 4.00 Overstable

Parts Breakdown

dx3.rkt Ogive Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]

Madcow Rocketry C80 Ring

Madcow Rocketry CB80 Ring

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 25.50 in]

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]

Custom Ring

Madcow Rocketry Rip stop nylon Parachute (24.00 in)

Custom Ring

dx3.rkt Trapezoid Fin Set Trapezoid Fin Set
