Maverick AGM-65 1/3rd Scale Rocksim Design File

• Manufacturer: Scratch

Designer: Carl Tulanko

Download scratch_agm_65maverick33percentscale.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - AGM-65A-X Maverick {Scratch}

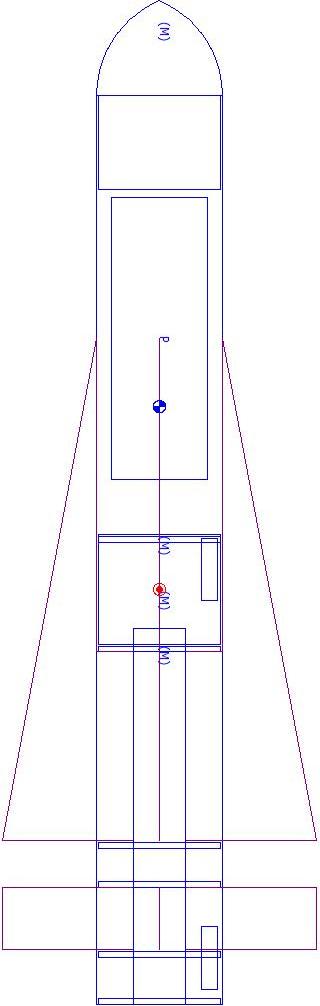

CG: 12.9343 inches from front
CP: 18.7579 inches from front
Margin: 1.46

Parts Breakdown

• Maverick AGM-65 1/3rd Scale Ogiv Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 29.00 in]
• Public Missiles Rip stop nylon Parachute (54.00 in)
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles LL-0.50 Launch Lug
• Maverick AGM-65 1/3rd Scale Free Freeform Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Maverick AGM-65 1/3rd Scale Free Freeform Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Custom Mass Object
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CBP-3.9 Ring
• Public Missiles DRING-1.0 1 inch Mass Object
• Public Missiles LL-0.50 Launch Lug
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
