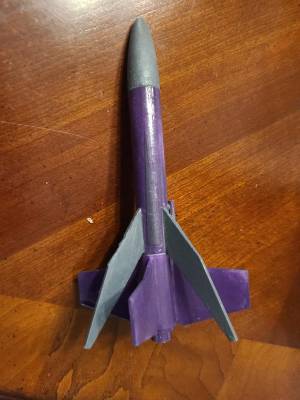

Semroc Firefly Rocksim Design File

• Family: Centuri : Firefly
• Manufacturer: Semroc
• Power: Low-Power
• Recovery: Streamer
• Skill Level: 2
• Style: Multi-Stage

Comments: KV-31

Designer: Semroc Astronautics Corp

Download semroc_firefly.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Semroc - Firefly {Kit} (KV-31)
Diameter: 0.9080 inches
Length: 9.0000 inches
Style: Multi-Stage

CG: 4.9360 inches from front
CP: 6.8809 inches from front
Margin: 2.14

Parts Breakdown

• Semroc Firefly Elliptical Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
• Semroc Firefly Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• DIY Polyethylene LDPE Streamer (0.0010 in)
• Semroc CR-58 Ring
• Semroc CR-58 Ring
• Semroc TR-5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Centuri Engineering Co. Firefly Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Estes 30162-2 Ring
• Estes 30162-2 Ring
• Custom Ring
