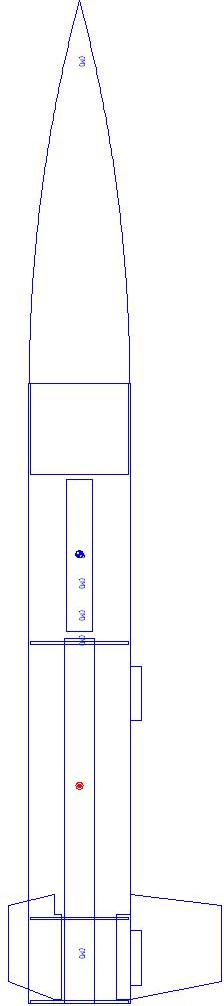

PK-76 IROC Rocksim Design File

Contributed by LOC Precision

• Manufacturer: LOC/Precision
• Motor Size: 38 mm
• Power: High-Power
• Recovery: Parachute
• Style: Sport

Designer: LOC Precision

Download loc_iroc.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: LOC/Precision - I-ROC {Kit} (PK-76)
Diameter: 5.5400 inches
Style: Sport

CG: 30.3742 inches from front
CP: 43.0595 inches from front
Margin: 2.31

Parts Breakdown

• BSD High Power Rocketry Diablo 5 Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• LOC LOC LL50 Launch Lug
• LOC LOC LL50 Launch Lug
• LOC/Precision Rip stop nylon Parachute (50.00 in)
• LOC Precision SC-500 1/2 In Elastic shock cord Mass Object
• DIY 1/4-20 Eye whs nut Mass Object
• Custom Mass Object
• PK-76 IROC Freeform Fin Set Freeform Fin Set
• LOC Precision LOC CR-2.14-1.52 Ring
• LOC Precision LOC CR-5.38-1.52 Ring
• LOC Precision LOC CR-5.38-1.52 Ring
• Custom Mass Object
