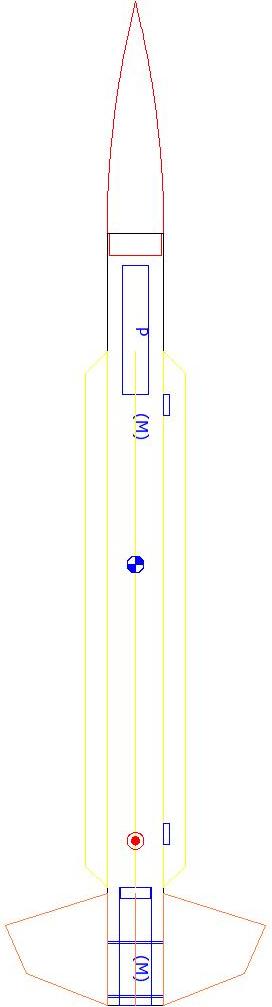

Tartar Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 3
• Style: Scale-Like

Comments: entered into RockSim by Alan Estenson

Designer: Tom Hulderman

Download plans_eirp83_tartar.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Tartar {Kit} (1360) [1981-1982]
Length: 23.2500 inches
Style: Scale-Like

CG: 13.1159 inches from front
CP: 19.5590 inches from front
Margin: 4.86 Overstable

Parts Breakdown

• 2-cluster 4-fin Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes ESTES 2321 Launch Lug
• Estes Tartar Trapezoid Fin Set Trapezoid Fin Set
• Estes Tartar Freeform Fin Set Freeform Fin Set
• Estes 30125 Ring
• Estes Estes Ring
• Estes 30125 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Apogee 13029 Ring
• Estes Engine hook Standard size Mass Object
• Custom Mass Object
• Estes ESTES 2321 Launch Lug
