marlin_Gabriel Rocksim Design File

• Manufacturer: Scratch
• Style: Upscale

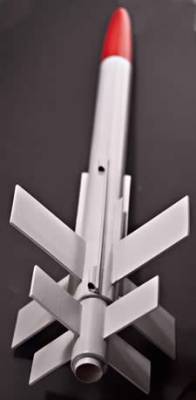

Comments: See EMRR - nose cone red color continues down body tube. The rest is a solid green. D12-5 for first flight D12-3 has too much drift

Designer: Marlin Meyer January, 2010 Completed April, 2010 Semroc parts Israeli

Download marlin_gabriel 1_upscale.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Gabriel Upscale {Scratch}
Style: Upscale

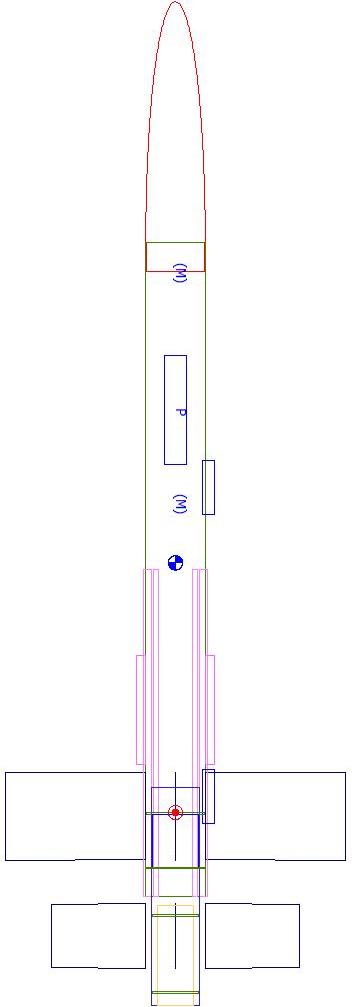

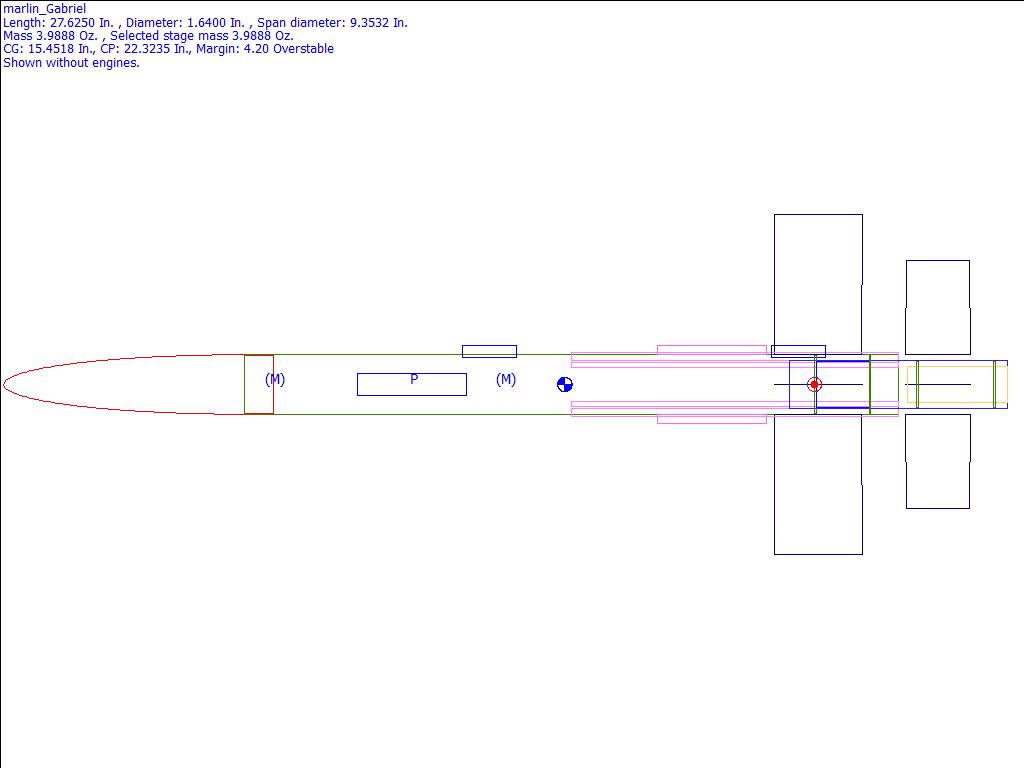

CG: 15.4518 inches from front
CP: 22.3235 inches from front
Margin: 4.20 Overstable

Parts Breakdown

• Centuri - Gabriel (upscale) Elli Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• marlin_Gabriel Freeform Fin Set Freeform Fin Set
• Centuri - Gabriel (upscale) Free Freeform Fin Set
• Centuri - Gabriel (upscale) Free Freeform Fin Set
• Apogee 13056 Launch Lug
• Apogee 13056 Launch Lug
• Centuri - Gabriel (upscale) Free Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• SEMROC Astronautics RA-5560 Ring
• Semroc JT-55C Ring
• SEMROC Astronautics RA-5560 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• SEMROC Astronautics RA-5055 Ring
• SEMROC Astronautics RA-5055 Ring
