Designs >> Rocksim Library >>	All Rocksim Designs (2600 of 3219)Tag - Manufacturer:Scratch

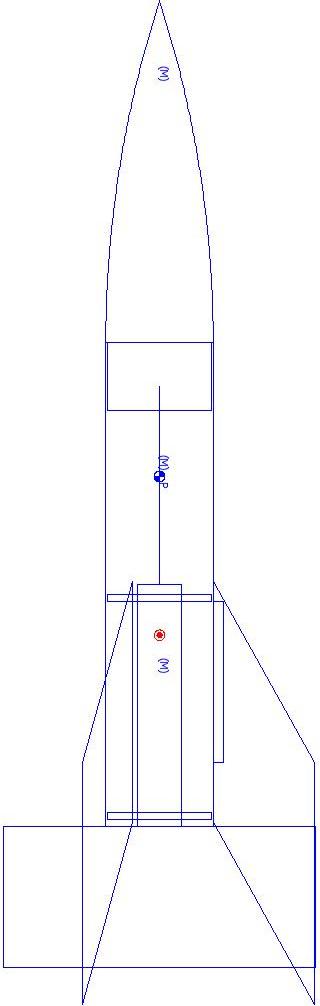

Sprite Rocksim Design File

• Manufacturer: Scratch

Download scratch_sprite.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Superscale Sprite {Scratch}

CG: 17.7275 inches from front
CP: 23.6345 inches from front
Margin: 1.48

Parts Breakdown

• Sprite Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.25 in]
• Public Missiles Rip stop nylon Parachute (44.00 in)
• Public Missiles PML SC-1.0 "1"" shock cord" Mass Object
• Sprite Trapezoid Fin Set Trapezoid Fin Set
• Public Missiles PML LL-38 Launch Lug
• Custom Mass Object
• Custom Ring
• Custom Ring
