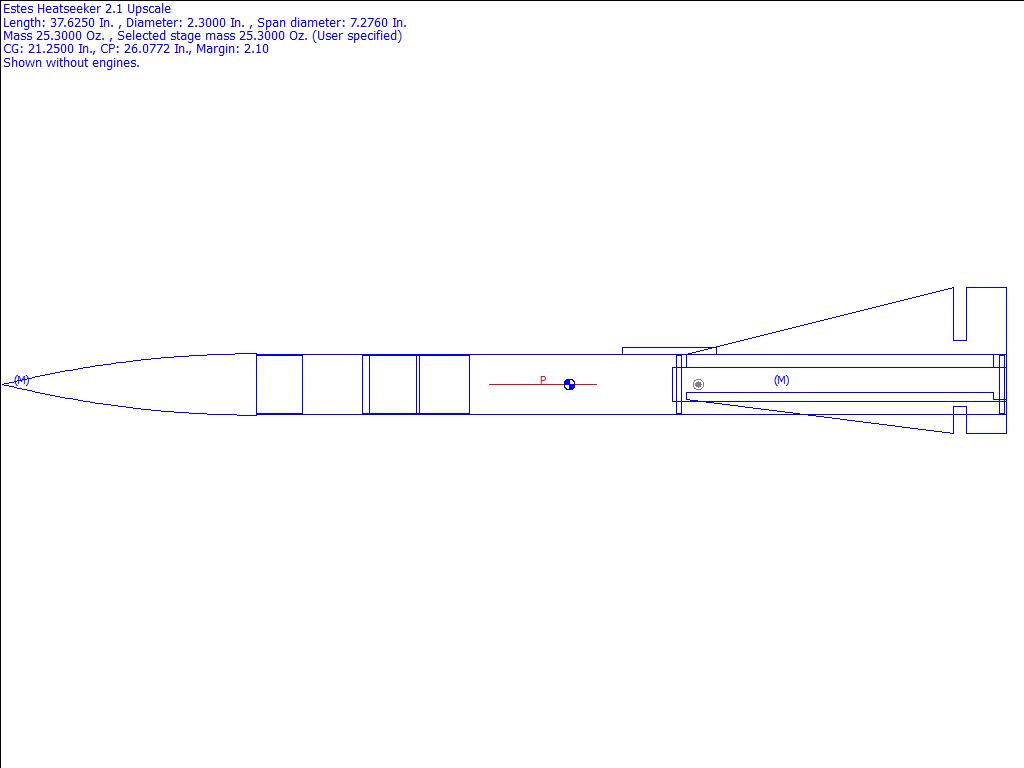

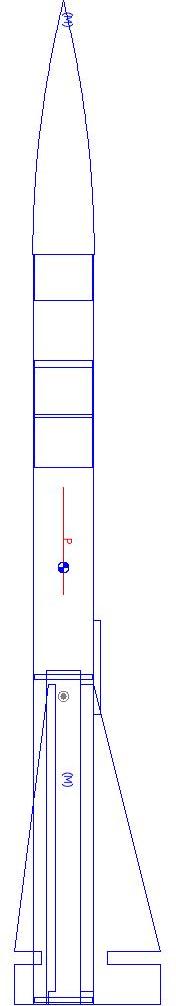

AGM-57X Heatseeker Rocksim Design File

• Manufacturer: Scratch

Comments: Compliments to Jim Z.

Designer: Me

Download scratch_2.1heatseeker.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - AGM-57X Heatseeker {Scratch}

CG: 21.2500 inches from front
CP: 26.0772 inches from front
Margin: 2.10

Parts Breakdown

• AGM-57X Heatseeker Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Public Missiles Ltd. PML CT-2.15 Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.12 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.00 in]
• AGM-57X Heatseeker Freeform Fin Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.50 in]
• Custom Mass Object
• Public Missiles PML LL-25 Launch Lug
• Public Missiles Rip stop nylon Parachute (24.00 in)
• Public Missiles PML CR-01 Ring
• Public Missiles PML CR-01 Ring
