Phoenix 2.6 Rocksim Design File

• Manufacturer: Scratch

Designer: Thomas Slater, with origanol data entered by Tim Van Milligan

Download scratch_tomphoenix.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

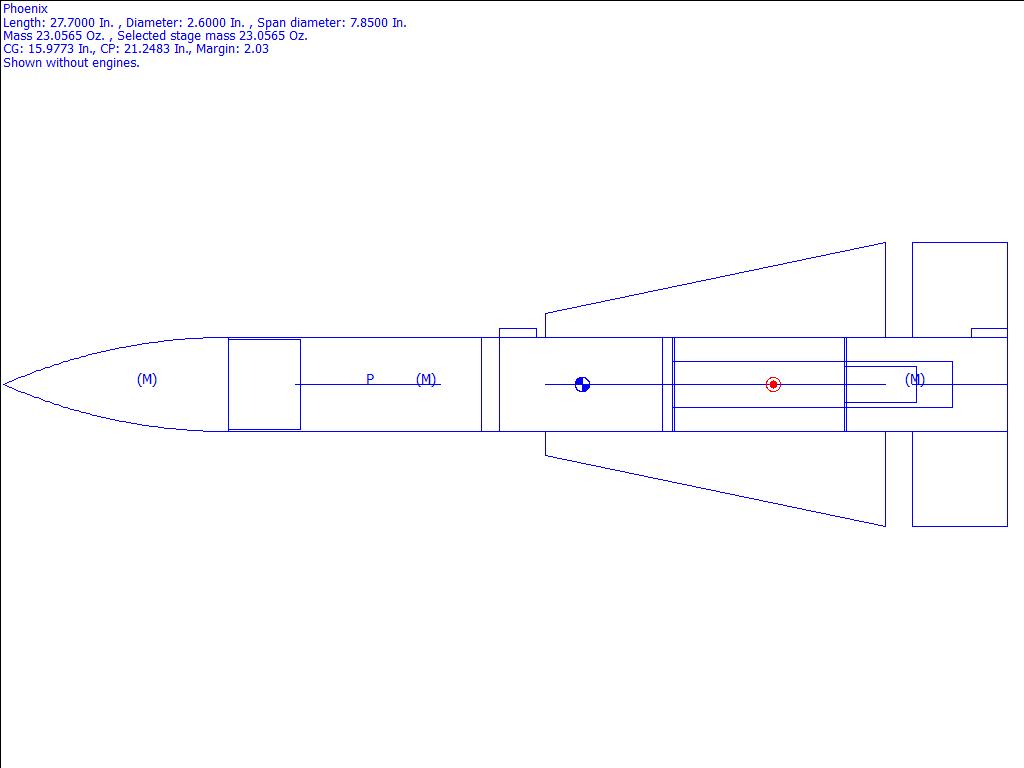

Kit Name: Scratch - Phoenix 2.6 {Scratch}

CG: 15.9773 inches from front
CP: 21.2483 inches from front
Margin: 2.03

Parts Breakdown

• Phoenix 2.6 Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Public Missiles Ltd. PML CT-2.56 Ring
• Public Missiles Rip stop nylon Parachute (24.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Phoenix 2.6 Trapezoid Fin Set Trapezoid Fin Set
• Phoenix 2.6 Freeform Fin Set Freeform Fin Set
• Public Missiles PML LL-25 Launch Lug
• Public Missiles PML LL-25 Launch Lug
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.75 in]
• Eng. Hook Retainer Tube BT-50 Sl Ring
• Estes Engine hook Standard size Mass Object
