Tall Boy Rocksim Design File

Contributed by Joe Policy

• Designer: Andy Jackson
• Family: ASP : Tall Boy
• Manufacturer: Aerospace Specialty Products
• Recovery: Parachute
• Skill Level: 2
• Style: Sport

Comments: Full Configuration

Designer: Aerospace Specialty Products (ASP)

Download asp_tallboy.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

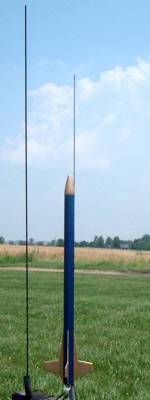

Kit Name: Aerospace Specialty Products - Tall Boy {Kit} (KTB-24)
Diameter: 1.6370 inches
Length: 122.5000 inches
Style: Sport

CG: 67.7284 inches from front
CP: 114.2543 inches from front
Margin: 28.42 Overstable

Parts Breakdown

• Tall Boy Parabolic Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.19 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.19 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.19 in]
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.19 in]
• Custom Mass Object
• Tall Boy Trapezoid Fin Set Trapezoid Fin Set
• Tall Boy Freeform Fin Set Freeform Fin Set
• Estes ESTES 2328 Launch Lug
• Estes ESTES 2328 Launch Lug
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Custom Ring
• Custom Mylar Parachute (15.00 in)
• Custom Mass Object
• Tall Boy Freeform Fin Set Freeform Fin Set
