Designs >> Rocksim Library >>	All Rocksim Designs (1362 of 3219)

Mars Snooper Rocksim Design File

Comments: Data entered by Larry Zeilmann

Designer: Estes

Download oop_estes_mars_snooper.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

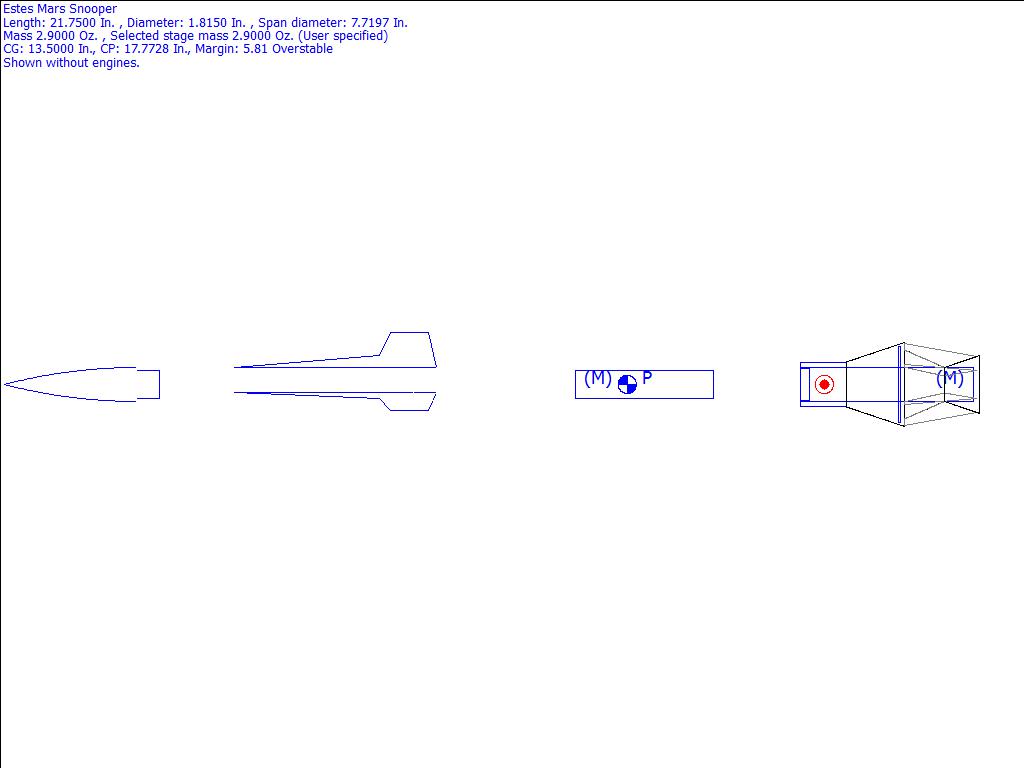

CG: 13.5000 inches from front
CP: 17.7728 inches from front
Margin: 5.81 Overstable

Parts Breakdown

• Estes Mars Snooper Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• Estes Mars Snooper Freeform Fin Freeform Fin Set
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.87 in]
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Mars Snooper Freeform Fin Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• Estes Engine hook Standard size Mass Object
• Estes Estes Ring
• Estes 30125 Ring
• Estes 30162-2 Ring
• Custom Conical Transition
• Custom Conical Transition
• Estes Mars Snooper Freeform Fin Freeform Fin Set
• Custom Conical Transition
