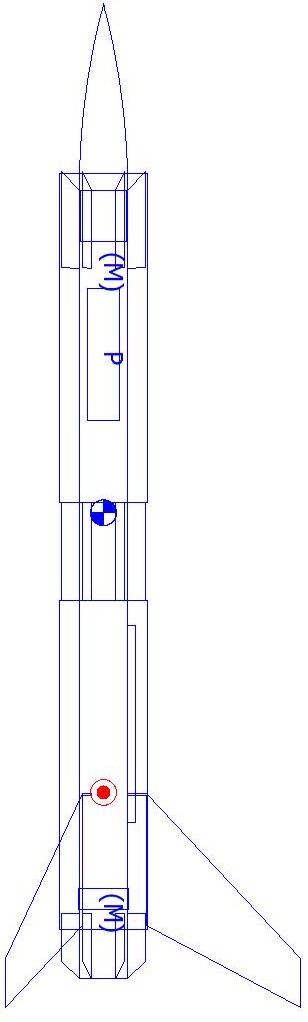

Ram Jet Rocksim Design File

• Manufacturer: Estes

Comments: The software was "tricked" into making this design.

Designer: Estes Industries, Inc., (data entered by Charles Keller based on Kit # K-1994 instructions)

Download oop_estes_ramjet_2.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Ram Jet {Kit} (1994) [1988-1991]

CG: 7.7440 inches from front
CP: 11.9992 inches from front
Margin: 5.78 Overstable

Parts Breakdown

• Broken Arrow Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Estes ESTES 2321 Launch Lug
• Custom Mass Object
• Quest Polyethylene LDPE Parachute (12.00 in)
• Estes Eng. Hook Sleeve Ring
• Estes Engine hook Standard size Mass Object
• Estes Ram Jet Trapezoid Fin Set Trapezoid Fin Set
• Estes Ram Jet Freeform Fin Set Freeform Fin Set
• Estes Ram Jet Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Estes Ram Jet Trapezoid Fin Set Trapezoid Fin Set
