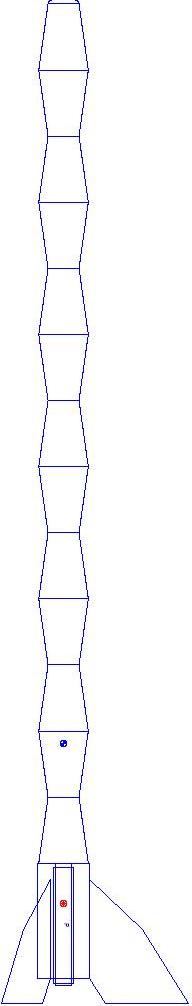

Styro-1 Rocksim Design File

• Manufacturer: Scratch

Comments: approximation of my 1st try at a rocket made from styrofoam cups

Designer: Dick Stafford

Download scratch_styro_1a.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Styro-1 {Scratch}

CG: 45.0000 inches from front
CP: 54.6872 inches from front
Margin: 5.17 Overstable

Parts Breakdown

• Styro-1 Power Series Nose Cone
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Custom Mylar Parachute (44.32 in)
• Styro-1 Freeform Fin Set Freeform Fin Set
