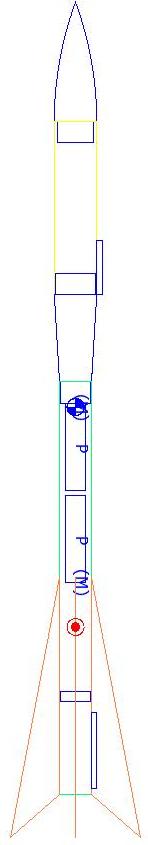

Deacon Rocksim Design File

Comments: entered into RockSim by Alan Estenson

Designer: Ronald Tessendorf

Download plans_eirp27_deacon.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 9.3335 inches from front
CP: 14.3996 inches from front
Margin: 5.19 Overstable

Parts Breakdown

• Aardvark Rockets BT-55 Gadfly Og Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Estes ESTES 2321 Launch Lug
• Estes Conical Transition
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Apogee 13029 Ring
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes Deacon Trapezoid Fin Set Trapezoid Fin Set
• Estes ESTES 2321 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes Deacon Freeform Fin Set Freeform Fin Set
• Estes ESTES 2321 Launch Lug
