Trinity Rocksim Design File

Contributed by Rags Fehrenbach

• Manufacturer: LOC/Precision

Comments: Certification Level 1

Designer: Rags Fehrenbach

Download loc_locvulca.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

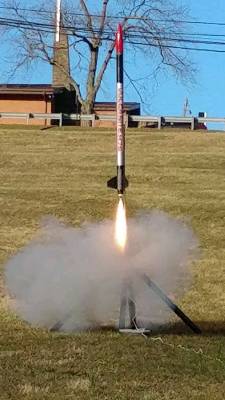

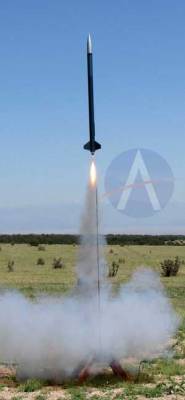

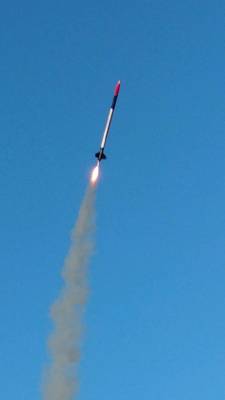

Kit Name: LOC/Precision - Vulcanite H76 {Kit}

CG: 28.2138 inches from front
CP: 46.8176 inches from front
Margin: 8.23 Overstable

Parts Breakdown

• Trinity Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Trinity Freeform Fin Set Freeform Fin Set
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Rip stop nylon Parachute (28.00 in)
• Custom Launch Lug
• Custom Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
