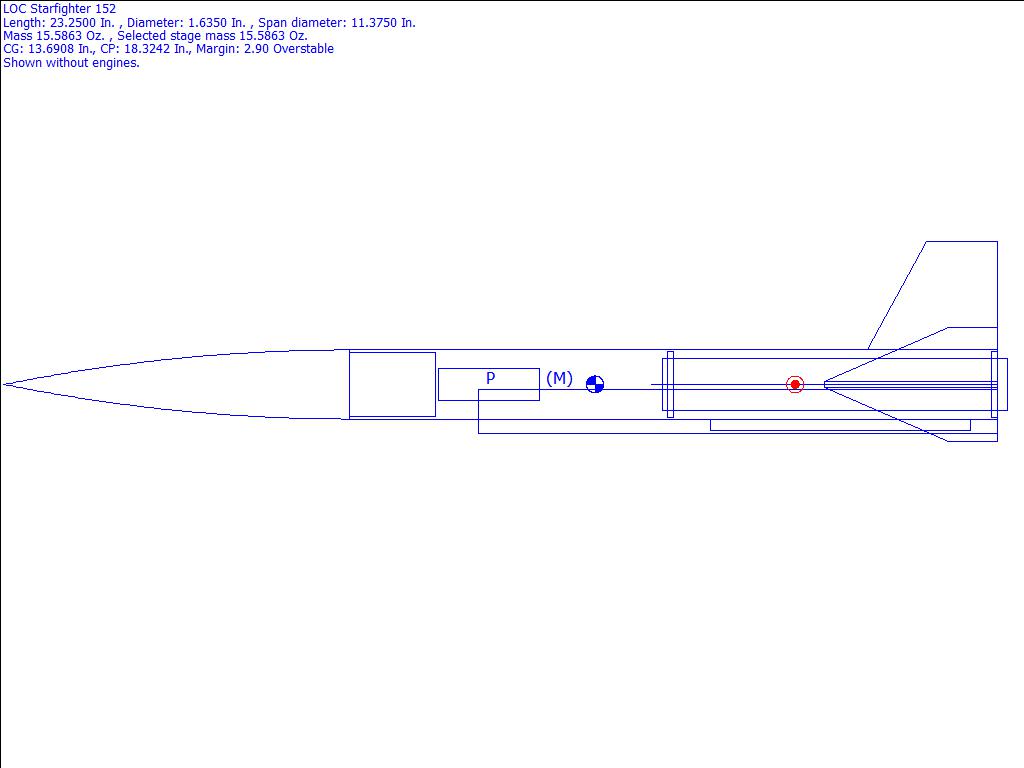

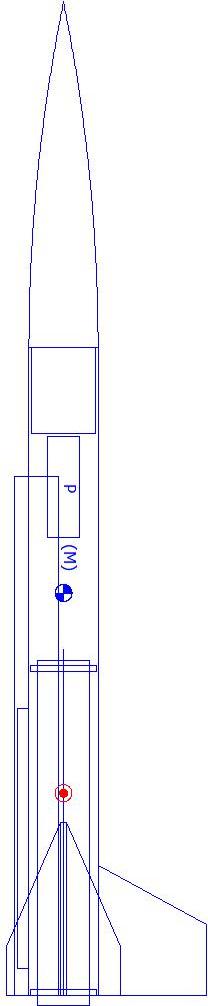

LOC Starfighter 152 Rocksim Design File

Contributed by Cliff Sojourner

• Manufacturer: LOC/Precision

Comments: uses wing-on-wing hack from Apogee newsletter 113 http://www.apogeerockets.com/education/downloads/Newsletter113.pdf - rocksim does not draw winglets correctly but they are simulated!

Designer: LOC Precision (Barry Lynch?)

Download loc_starfighter152.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

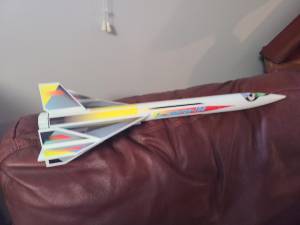

Kit Name: LOC/Precision - Starfighter-152 {Kit}

Parts Breakdown

• Ana Cana Puna Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• LOC/Precision Rip stop nylon Parachute (14.00 in)
• Custom Mass Object
• LOC Precision LOC FCR-1.52-1.14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• LOC Starfighter 152 Trapezoid Fi Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• LOC LOC LL25 Launch Lug
• LOC Starfighter 152 Trapezoid Fi Trapezoid Fin Set
• LOC Starfighter 152 Trapezoid Fi Trapezoid Fin Set
• LOC Starfighter 152 Trapezoid Fi Trapezoid Fin Set
• LOC Precision LOC FCR-1.52-1.14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• LOC Starfighter 152 Trapezoid Fi Trapezoid Fin Set
