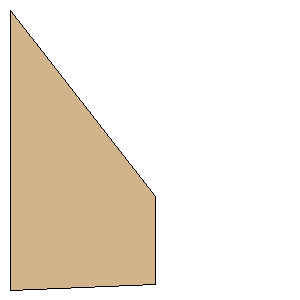

1-4PatriotLOC.RKT Trapezoid Fin Trapezoid Fin SetManufacturer: | PML | Part Number: | 1-4Pat1 | Style: | Trapezoid Fin Set | Material: | Aircraft plywood (Birch) |
Download as PDF Root Chord: | 6.7500 inches (171.4500 mm) | Tip Chord: | 2.1250 inches (53.9750 mm) | Sweep Distance: | 4.5008 inches (114.3203 mm) | SemiSpan: | 3.5000 inches (88.9000 mm) | Point 1: | (0.0000 mm, 0.0000 mm) | Point 2: | (88.9000 mm, 114.3203 mm) | Point 3: | (88.9000 mm, 168.2953 mm) | Point 4: | (0.0000 mm, 171.4500 mm) | Width: | 3.5000 inches (88.9000 mm) | Height: | 6.7500 inches (171.4500 mm) |
