Public Missiles AMRAAM-2.1 Trape Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | AM22 | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |

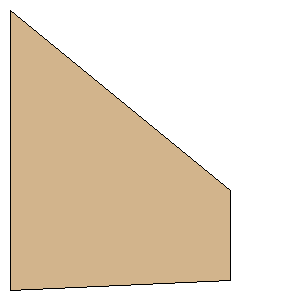

Download as PDF | Root Chord: | 3.5000 inches (88.9000 mm) | | Tip Chord: | 1.1250 inches (28.5750 mm) | | Sweep Distance: | 2.2500 inches (57.1500 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 57.1500 mm) | | Point 3: | (69.8500 mm, 85.7250 mm) | | Point 4: | (0.0000 mm, 88.9000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 3.5000 inches (88.9000 mm) |
