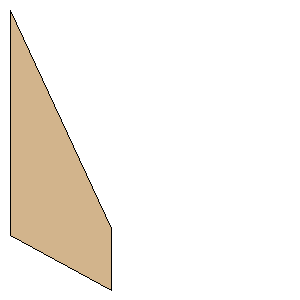

RockSim - Endeavour (dual deploy Trapezoid Fin Set| Manufacturer: | PML | | Part Number: | End1 | | Style: | Trapezoid Fin Set | | Material: | G10 phenolic |
Download as PDF | Root Chord: | 7.7500 inches (196.8500 mm) | | Tip Chord: | 2.1250 inches (53.9750 mm) | | Sweep Distance: | 7.4989 inches (190.4721 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, 190.4721 mm) | | Point 3: | (88.9000 mm, 244.4471 mm) | | Point 4: | (0.0000 mm, 196.8500 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 9.6239 inches (244.4471 mm) |
