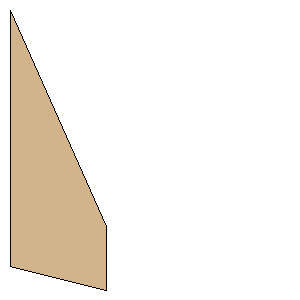

Resistor 224 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-01 | | Style: | Trapezoid Fin Set | | Material: | 3/16 Aircraft Plywood |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 3.3750 inches (85.7250 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 85.7250 mm) | | Point 3: | (38.1000 mm, 111.1250 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 4.3750 inches (111.1250 mm) |
