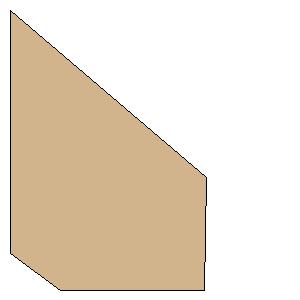

AGM600-54mm-A.rkt Freeform Fin S Freeform Fin Set| Manufacturer: | Public Missiles | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 254.5540 mm) | | Point 2: | (52.6034 mm, 292.6160 mm) | | Point 3: | (203.3840 mm, 292.6160 mm) | | Point 4: | (204.8480 mm, 175.5040 mm) | | Point 5: | (0.0000 mm, 0.0000 mm) | | Width: | 10.0218 inches (254.5540 mm) | | Height: | 11.5203 inches (292.6160 mm) |
