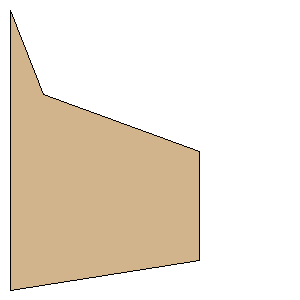

Sirius Rocketry Interrogator G F Freeform Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-04 & FIN-PHOB-xx | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 147.5740 mm) | | Point 2: | (100.0130 mm, 131.8260 mm) | | Point 3: | (100.0130 mm, 74.6760 mm) | | Point 4: | (17.4625 mm, 44.4500 mm) | | Point 5: | (0.0000 mm, 0.0000 mm) | | Width: | 5.8100 inches (147.5740 mm) | | Height: | 5.8100 inches (147.5740 mm) |
