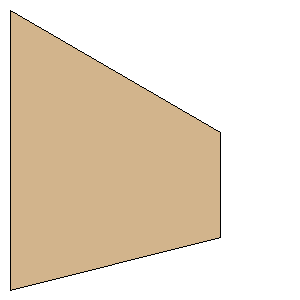

Kookaburra RockSim file Trapezoi Trapezoid Fin Set| Manufacturer: | Public Missiles | | Part Number: | FIN-A-05 & FIN-MIRAN | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 4.0000 inches (101.6000 mm) | | Tip Chord: | 1.5000 inches (38.1000 mm) | | Sweep Distance: | 1.7500 inches (44.4500 mm) | | SemiSpan: | 3.0000 inches (76.2000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (76.2000 mm, 44.4500 mm) | | Point 3: | (76.2000 mm, 82.5500 mm) | | Point 4: | (0.0000 mm, 101.6000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 4.0000 inches (101.6000 mm) |
