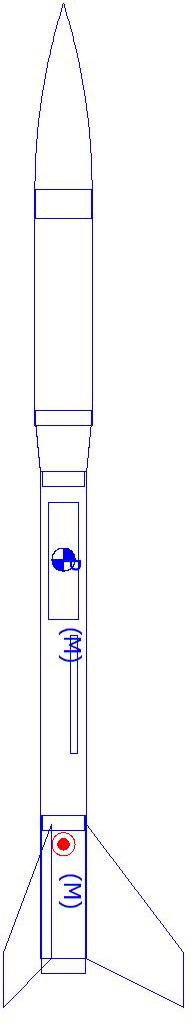

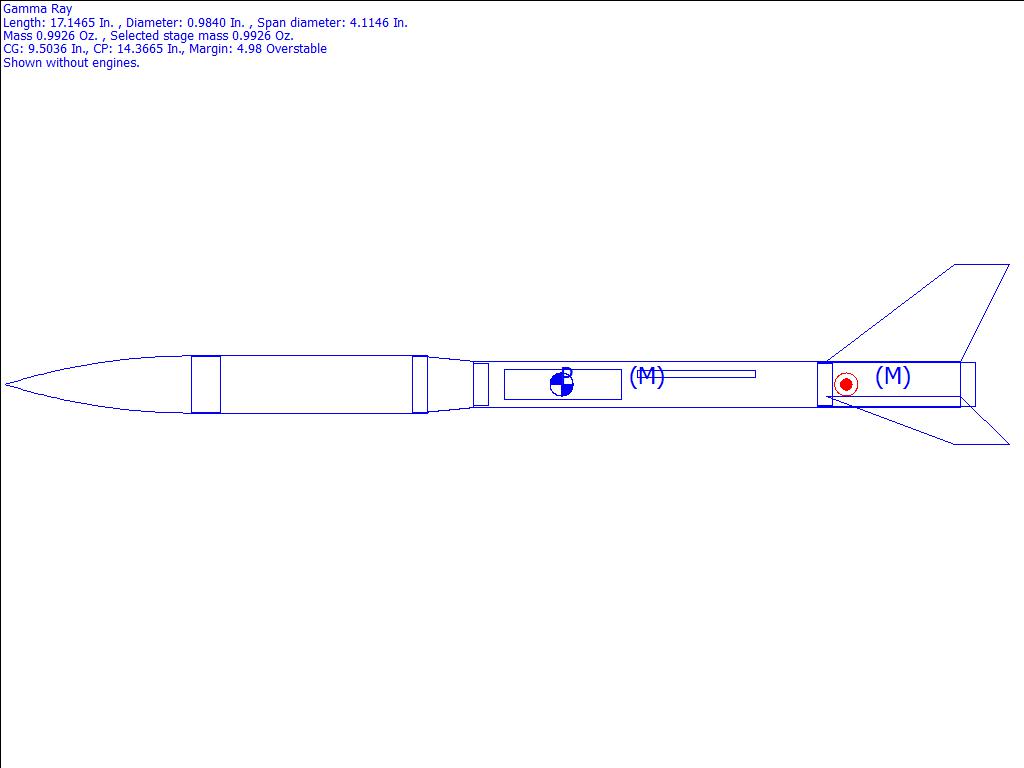

Quest Gamma Ray Rocksim Design File

• Designer: Scott Branche
• Manufacturer: Quest
• Recovery: Parachute
• Skill Level: 2
• Style: Payload

Designer: Quest

Download quest_gammaray.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Quest - Gamma Ray {Kit} (2004) [1994-]
Diameter: 0.7870 inches
Length: 17.3800 inches
Style: Payload

Parts Breakdown

• Quest Gamma Ray Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.03 in]
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.31 in]
• Quest Gamma Ray Trapezoid Fin Se Trapezoid Fin Set
• Estes ESTES 2321 Launch Lug
• Custom Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.69 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
