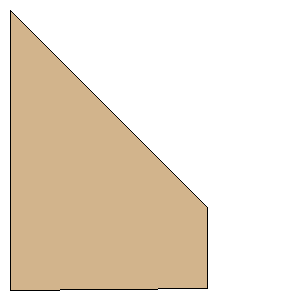

Plans The Doorknob Trapezoid Fin Trapezoid Fin Set| Manufacturer: | RER | | Part Number: | Doorknob | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 1.4200 inches (36.0680 mm) | | Tip Chord: | 0.4100 inches (10.4140 mm) | | Sweep Distance: | 1.0000 inches (25.4000 mm) | | SemiSpan: | 1.0000 inches (25.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.4000 mm, 25.4000 mm) | | Point 3: | (25.4000 mm, 35.8140 mm) | | Point 4: | (0.0000 mm, 36.0680 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 1.4200 inches (36.0680 mm) |
