Super Neon XL - Rocksim Design File


× We have recently moved to a new server. If you run into any issues, please let us know through the Contact Us link at the bottom of the page. Thanks for visiting RocketReviews.
Designs >> Rocksim Library >>

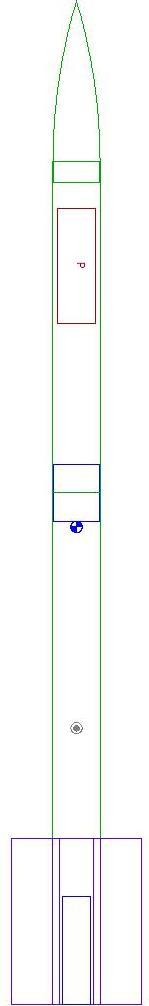

Super Neon XL Rocksim Design File

Download Estes Super Neon XL.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Super Neon XL {Kit} (002425) [?-2013]
Diameter: 1.6400 inches
Length: 35.0000 inches
Style: Ring/Tube/Cone Fin

CG: 18.2493 inches from front
CP: 25.2303 inches from front
Margin: 4.28 Overstable

Parts Breakdown

Estes Super Neon XL Ogive Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.50 in]

Estes Estes Ring

Apogee Components Polyethylene LDPE Parachute (24.00 in)

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.75 in]

TubeFinSet

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
