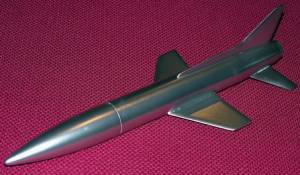

Space Ark Jr. Rocksim Design File

Contributed by Lester Anderson

• Manufacturer: Pemberton Technologies

Comments: Space Ark Down-scale BT-60

Designer: Layne Pemberton Pembertontechnologies.com sales@pembertontechnologies.com

Download pemberton_space_ark_jr.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Pemberton Technologies - Space Ark Jr {Kit}

CG: 7.2572 inches from front
CP: 11.7949 inches from front
Margin: 2.78 Overstable

Parts Breakdown

• Little Bucky Jones BT60 Final Og Nose Cone
• Public Missiles HDWE-EYE-1/8 1/8x24 Mass Object
• Public Missiles Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.75 in]
• Space Ark Jr. Trapezoid Fin Set Trapezoid Fin Set
• Apogee Components Polyethylene LDPE Parachute (17.99 in)
• Custom Mass Object
• Apogee 13056 Launch Lug
• Space Ark Jr. Freeform Fin Set Freeform Fin Set
• Balsa Machining Service Ogive Transition
• Space Ark Jr. Trapezoid Fin Set Trapezoid Fin Set
• Space Ark Jr. Trapezoid Fin Set Trapezoid Fin Set
• Space Ark Jr. Trapezoid Fin Set Trapezoid Fin Set
• Space Ark Jr. Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
