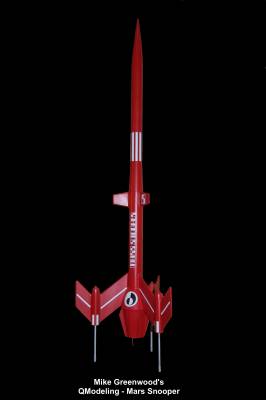

Mars Snooper Rocksim Design File

Contributed by Jim Yehle

• Manufacturer: Qmodeling

Comments: 1.6 upscale of classic Estes design Mid-fin pods can't be specified in Rocksim (except in an extremely cumbersome and inaccurate way). Masses of components are not accurate, so a mass correction object was added to match as-build total mass and CG.

Designer: Qmodeling

Download qmodeling_snooper.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Qmodeling - SNOOPER

Parts Breakdown

• Mars Snooper Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.94 in]
• Qmodeling Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.62 in]
• Mars Snooper Freeform Fin Set Freeform Fin Set
• Public Missiles Rip stop nylon Parachute (24.00 in)
• various various paint glue mass errors Mass Object
• Qmodeling Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.37 in]
• Mars Snooper Freeform Fin Set Freeform Fin Set
• Qmodeling Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Mars Snooper Freeform Fin Set Freeform Fin Set
