Laser 3.90 LOCTronics Rocksim Design File

• Manufacturer: Scratch

Designer: LOC Precision

Download scratch_laser_390loctronics.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

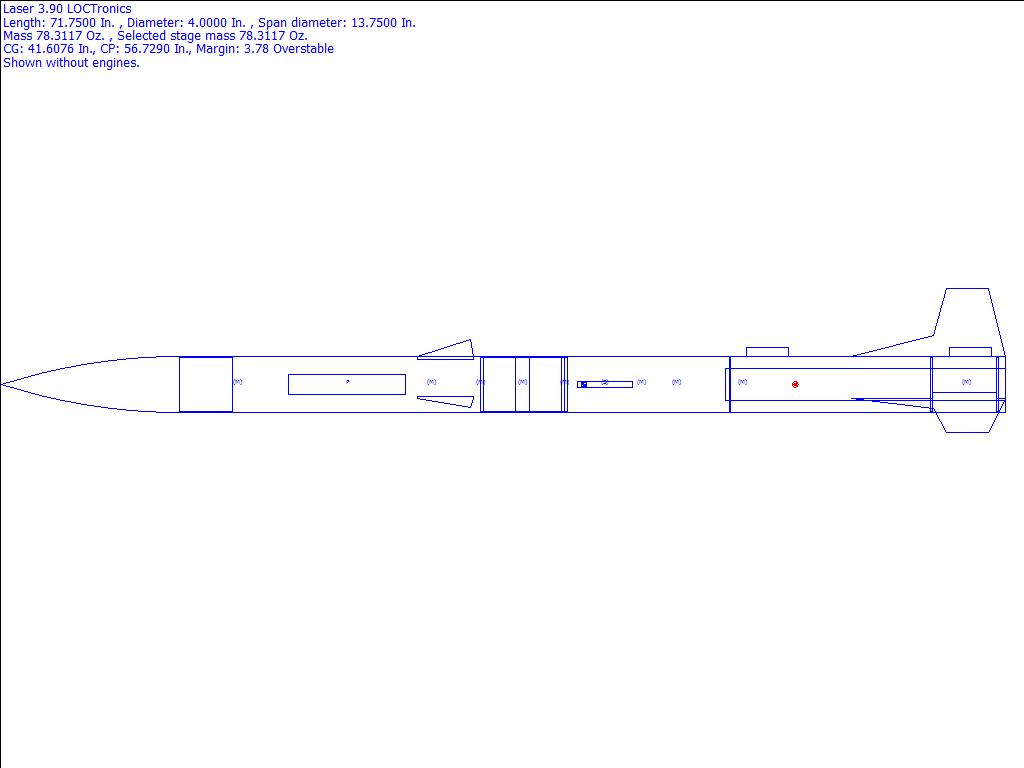

Kit Name: Scratch - Laser 3.90 LOCTronics {Scratch}

CG: 41.6076 inches from front
CP: 56.7290 inches from front
Margin: 3.78 Overstable

Parts Breakdown

• 1-4PatriotLOC.RKT Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• LOC/Precision Rip stop nylon Parachute (50.00 in)
• DIY 1/4-20 Eye whs nut Mass Object
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
• Laser 3.90 LOCTronics Freeform F Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• LOC Precision TC-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.75 in]
• LOC Precision LOC BP-3.90 Ring
• LOC Precision LOC BP-3.90 Ring
• DIY 1/4-20 Eye whs nut Mass Object
• DIY 1/4-20 Eye whs nut Mass Object
• Public Missiles P6-SET Altimeter; Transolve P6 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• DIY 1/4-20 Eye whs nut Mass Object
• LOC Precision MMA-4 Mtr Mnt Adapter 54mm-38mm Mass Object
• Custom Mass Object
• LOC LOC LL50 Launch Lug
• LOC LOC LL50 Launch Lug
• LOC Precision LOC CR-3.9-2.14 Ring
• LOC Precision SCTN-30 Tubular Nylon 9/16 In x 30 Ft Mass Object
• LOC Precision LOC CR-3.9-2.14 Ring
• LOC Precision LOC CR-3.9-2.14 Ring
• Laser 3.90 LOCTronics Freeform F Freeform Fin Set
• LOC/Precision Polyethylene LDPE Streamer (0.0020 in)
