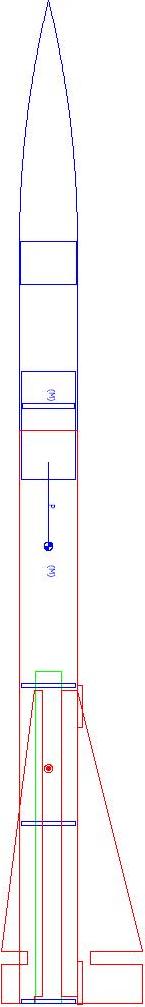

Heat Seeker (2.6") Rocksim Design File

• Manufacturer: Scratch

Download scratch_2.6heatseeker.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Heat Seeker (2.6") {Scratch}

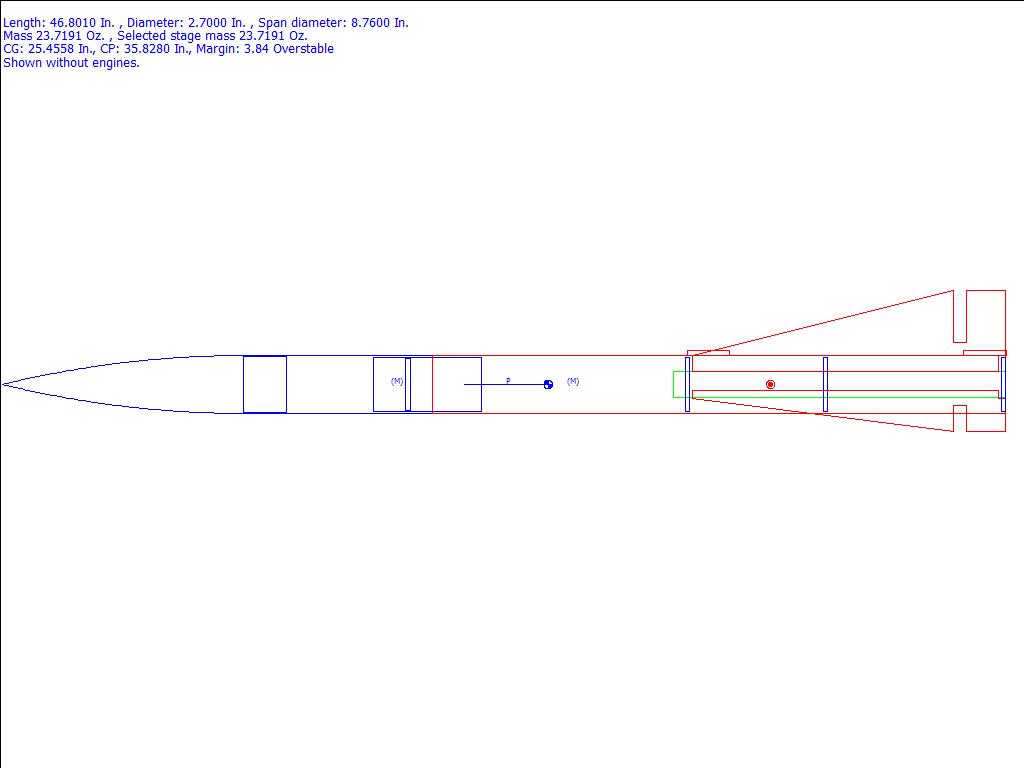

CG: 25.4558 inches from front
CP: 35.8280 inches from front
Margin: 3.84 Overstable

Parts Breakdown

• Giant Leap Rocketry Escape Veloc Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.80 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Public Missiles BP-2.5 Ring
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 26.73 in]
• Custom Mass Object
• Public Missiles Rip stop nylon Parachute (24.00 in)
• LOC LOC LL25 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.50 in]
• Public Missiles CR-2.5-1.1 Ring
• Public Missiles CR-2.5-1.1 Ring
• Heat Seeker (2.6") Freeform Fin Freeform Fin Set
• Public Missiles CR-2.5-1.1 Ring
• LOC LOC LL25 Launch Lug
