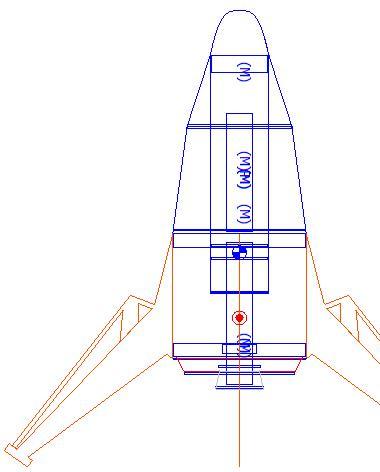

Mars Lander Rocksim Design File

Visit www.semroc.com to download Semroc-Mars%20Lander.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 6.7988 inches from front
CP: 8.6243 inches from front
Margin: 0.49 Marginal

Parts Breakdown

• Semroc-Mars Lander.rkt Power Ser Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Semroc Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.70 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Semroc CR-79 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Semroc Mass Object
• Semroc Polyethylene LDPE Parachute (20.00 in)
• Semroc Ring
• Estes Ring
• Estes Ring
• Custom Ring
• Custom Ring
• Semroc Mass Object
• Semroc Mass Object
• Semroc Ring
• Custom Ring
• Custom Ring
• Semroc Conical Transition
• Semroc Mass Object
• Semroc Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.50 in]
• Semroc-Mars Lander.rkt Freeform Freeform Fin Set
• Semroc RT-99D Ring
• Semroc RT-99D Ring
• Custom Ring
• Semroc Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.05 in]
• Semroc Conical Transition
