Estes - Top Shot Rocksim Design File

• Manufacturer: Estes
• Power: Low-Power
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Download Estes_Top_Shot.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

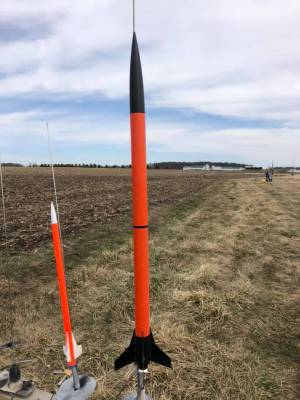

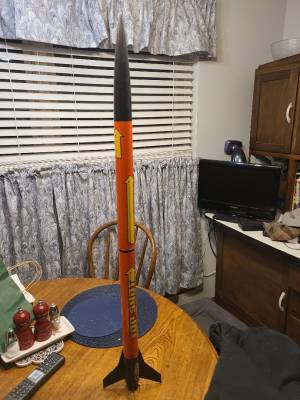

Kit Name: Estes - Top Shot {Kit} (001955) [2013-2018]
Diameter: 1.6400 inches
Length: 37.0000 inches
Style: Sport

CG: 26.3354 inches from front
CP: 30.7061 inches from front
Margin: 2.67 Overstable

Parts Breakdown

• Estes - Top Shot Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.00 in]
• Estes Estes Ring
• Estes ESTES 2321 Launch Lug
• LOC Precision Mass Object
• Estes Rip stop nylon Parachute (18.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.25 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.25 in]
• Public Missiles CR-1.5-1.1 Ring
• Public Missiles CR-1.5-1.1 Ring
• Estes - Top Shot Freeform Fin Se Freeform Fin Set
