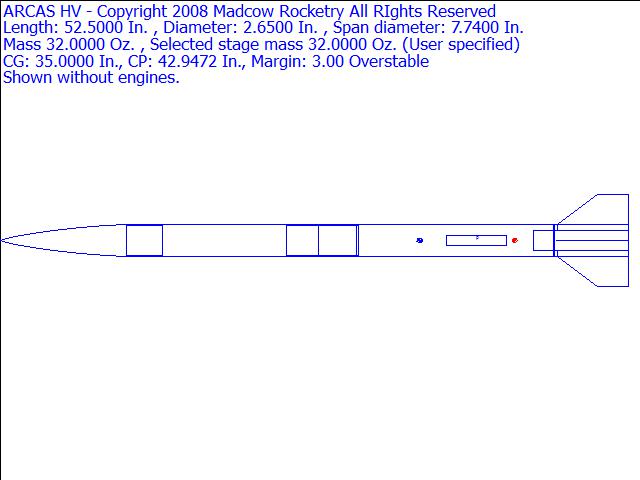

ARCAS HV - Copyright 2008 Madcow Rocketry All RIghts Reserved Rocksim Design File

Designer: RockSim File Created By Mike Stoop - Madcow Rocketry

Visit www.madcowrocketry.com to download arcas.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 35.0000 inches from front
CP: 42.9472 inches from front
Margin: 3.00 Overstable

Parts Breakdown

• arcas.rkt Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.00 in]
• Madcow Rocketry C80 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 26.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Madcow Rocketry CRF8052 Ring
• arcas.rkt Trapezoid Fin Set Trapezoid Fin Set
• Madcow Rocketry CRF8052 Ring
• Madcow Rocketry Rip stop nylon Parachute (30.00 in)
• Madcow Rocketry Ring
