Estes - Curvilinear Rocksim Design File

• Manufacturer: Estes
• Motor Size: 13 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Download Curvilinear.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

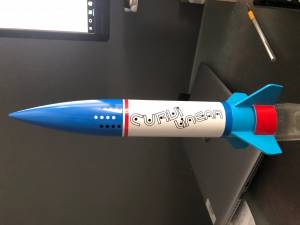

Kit Name: Estes - Curvilinear {Kit} (003231) [2012-?]
Diameter: 1.6400 inches
Length: 10.5000 inches
Style: Sport

Parts Breakdown

• Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.71 in]
• Cardboard Ring (0.5394 - 1.5748 in)
• Cardboard Ring (0.5394 - 1.5748 in)
• BigBertha-ThreeStage.rkt Mass Object
• Polyethylene LDPE Parachute (12.00 in)
• BigBertha-ThreeStage.rkt Mass Object
• Estes - Hyper Bat Launch Lug
• Balsa Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.98 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.24 in]
