Estes - Nike Apache Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Scale: Nike : Nike Apache
• Skill Level: 3
• Style: Scale

Comments: Parts measured and weighed from actual kit. Another Simulation by Bruce S. Levison

Designer: Estes Nike Apache Kit # 7254, 1/12.45 scale model

Download Estes_Nike_Apache 7254.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

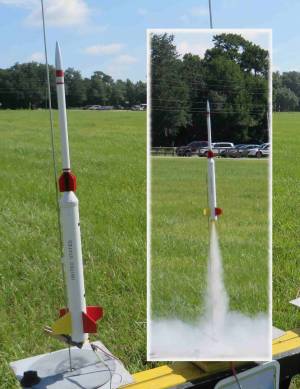

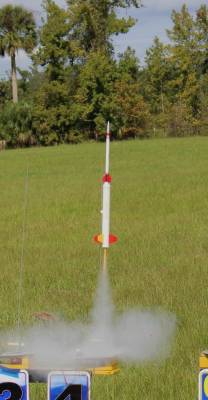

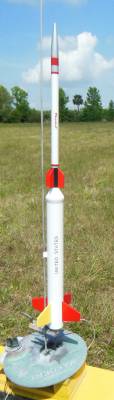

Kit Name: Estes - Nike Apache {Kit} (1957)
Diameter: 1.3250 inches
Length: 22.8750 inches
Style: Scale

Parts Breakdown

• Estes - Nike Apache Elliptical Nose Cone
• Estes Ogive Transition
• Estes Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Estes - Nike Apache Trapezoid Fi Trapezoid Fin Set
• Estes Conical Transition
• Estes Conical Transition
• Estes Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.62 in]
• Estes 30125 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes Eng. Hook Sleeve Ring
• Estes Engine hook Standard size Mass Object
• Estes - Nike Apache Trapezoid Fi Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.37 in]
• Estes - Nike Apache Trapezoid Fi Trapezoid Fin Set
• Estes 30125 Ring
• Estes - Nike Apache Trapezoid Fi Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.37 in]
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
