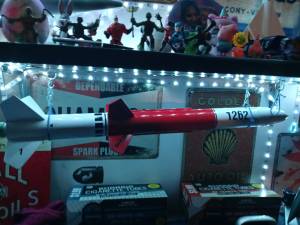

Estes - Red Nova Rocksim Design File

• Manufacturer: Estes
• Recovery: Parachute

Comments: Measurements from kit. Amother Simulation By Bruce S. Levison

Designer: Estes Red Nova Kit #7266

Download Estes Red Nova # 7266.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Red Nova (7266)
Diameter: 1.6400 inches
Length: 21.6000 inches

Parts Breakdown

• Estes - Red Nova Elliptical Nose Cone
• Custom Conical Transition
• Estes Mass Object
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes - Red Nova Freeform Fin Se Freeform Fin Set
• Apogee 15025 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Apogee 13031 Ring
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Apogee 15025 Ring
• Estes - Red Nova Freeform Fin Se Freeform Fin Set
• Estes ESTES 2328 Launch Lug
• Estes - Red Nova Trapezoid Fin S Trapezoid Fin Set
• Estes Mass Object
• Estes ESTES 2328 Launch Lug
