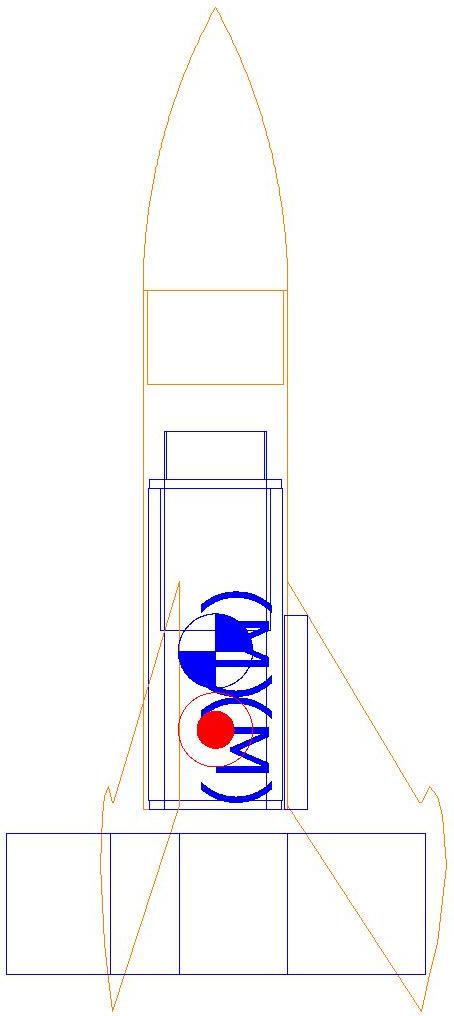

Estes - Sprite Rocksim Design File

• Designer: Gene Street
• Manufacturer: Estes
• Motor Size: 13 mm
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Featherweight/Tumble
• Recovery: Tumble
• Style: Ring Fin
• Style: Ring/Tube Fin
• Style: Ring/Tube/Cone Fin
• Style: Sport

Designer: xy3lug

Download Estes Sprite with S Series to 13mm adapter.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 3.4107 inches from front
CP: 3.8281 inches from front
Margin: 0.54 Marginal

Parts Breakdown

• Estes - Sprite Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• BalsaMachining.com EB13-P Ring
• BalsaMachining.com CR520-F Ring
• BalsaMachining.com CR520-F Ring
• BalsaMachining.com C20-3 Ring
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.75 in]
• Estes - Sprite Freeform Fin Set Freeform Fin Set
• Estes ESTES 2321 Launch Lug
• Custom Mass Object
• RingTail
