Estes - SR-71 Blackbird Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Scale: Aircraft : SR-71 Blackbird
• Skill Level: 3
• Style: Jet

Comments: Rocksim file created by Jeff Caldwell

Download estes_SR-71_Blackbird.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - SR-71 Blackbird {Kit} (7003)
Diameter: 0.9760 inches
Length: 19.0000 inches
Style: Jet

CG: 11.2090 inches from front
CP: 13.6843 inches from front
Margin: 2.54 Overstable

Parts Breakdown

• Estes - SR-71 Blackbird Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.00 in]
• Freeform Fin Set
• Estes ESTES 2321 Launch Lug
• Estes ESTES 2321 Launch Lug

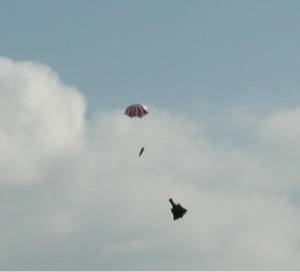

• Estes Polyethylene LDPE Parachute (18.00 in)
• Apogee 13031 Ring
• Apogee 13031 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Eng. Hook Sleeve Ring
• Estes Engine hook Standard size Mass Object
• Freeform Fin Set
• Estes - SR-71 Blackbird Trapezoi Trapezoid Fin Set
• External Pod
• Estes - SR-71 Blackbird Conical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Freeform Fin Set
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Custom Conical Transition
• Estes - SR-71 Blackbird Trapezoi Trapezoid Fin Set
• External Pod
• Estes - SR-71 Blackbird Conical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Freeform Fin Set
• Estes - SR-71 Blackbird Freeform Freeform Fin Set
• Custom Conical Transition
• Freeform Fin Set
• Estes Mass Object
