| Rocketry Parts Database >> Fins >> |

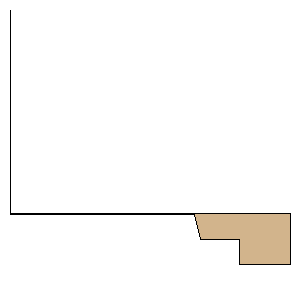

Thunderbird SAM (British) Freefo Freeform Fin Set| Manufacturer: | RTV | | Part Number: | TBBFF1 | | Style: | Freeform Fin Set | | Material: | Birch |
Download as PDF | Point 1: | (0.0000 mm, 50.9270 mm) | | Point 2: | (46.0375 mm, 50.9270 mm) | | Point 3: | (47.6250 mm, 57.1500 mm) | | Point 4: | (57.1500 mm, 57.1500 mm) | | Point 5: | (57.1500 mm, 63.5000 mm) | | Point 6: | (69.8500 mm, 63.5000 mm) | | Point 7: | (69.8500 mm, 50.8000 mm) | | Point 8: | (0.1270 mm, 50.8000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 2.5000 inches (63.5000 mm) |
