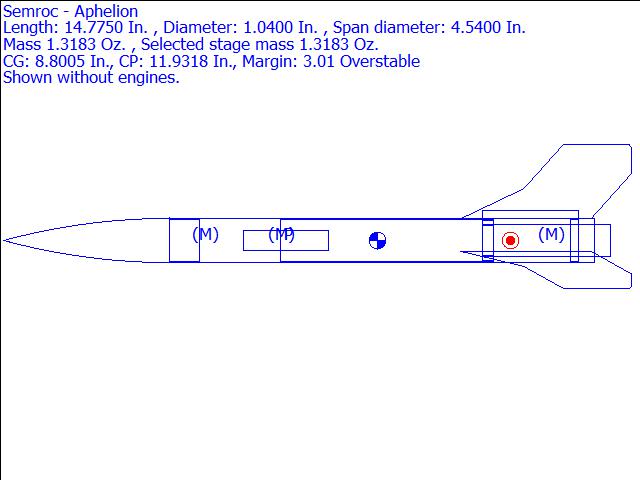

Semroc - Aphelion Rocksim Design File

Comments: KV-26

Designer: Semroc Astronautics Corp

Visit www.semroc.com to download Semroc-Aphelion.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 8.8005 inches from front
CP: 11.9318 inches from front
Margin: 3.01 Overstable

Parts Breakdown

• Semroc - Arcon Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Semroc EC-124 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TR-7 Ring
• Semroc EH-28 Engine Hook Mass Object
• Semroc CR-79 Ring
• Semroc CR-710 Ring
• Semroc-Aphelion.rkt Freeform Fin Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Semroc LL-122 Launch Lug
