Rocketry Parts Database >> Fins >>

Semroc-Firefly.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-31
Style:Freeform Fin Set
Material:Balsa

Download as PDF

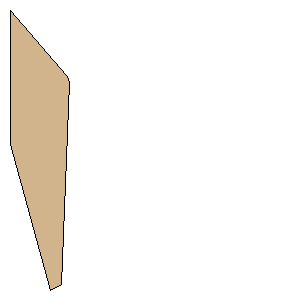

Point 1:(0.0000 mm, 43.4340 mm)
Point 2:(12.9540 mm, 90.6780 mm)
Point 3:(16.7640 mm, 88.9000 mm)
Point 4:(19.3040 mm, 23.6220 mm)
Point 5:(19.0500 mm, 22.6060 mm)
Point 6:(18.2880 mm, 21.0820 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:1.7100 inches (43.4340 mm)
Height:3.5700 inches (90.6780 mm)
