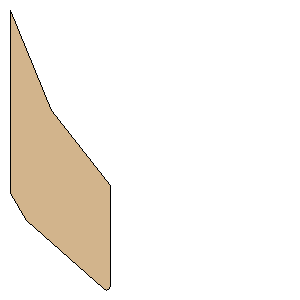

Starfire Freeform Fin Set Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FV-20 | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 69.6007 mm) | | Point 2: | (6.3673 mm, 79.6530 mm) | | Point 3: | (35.4347 mm, 105.6260 mm) | | Point 4: | (36.5513 mm, 106.0290 mm) | | Point 5: | (37.6350 mm, 105.5450 mm) | | Point 6: | (38.0799 mm, 104.4440 mm) | | Point 7: | (38.0953 mm, 66.6300 mm) | | Point 8: | (15.8661 mm, 38.1581 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7402 inches (69.6007 mm) | | Height: | 4.1744 inches (106.0290 mm) |
